Product Description

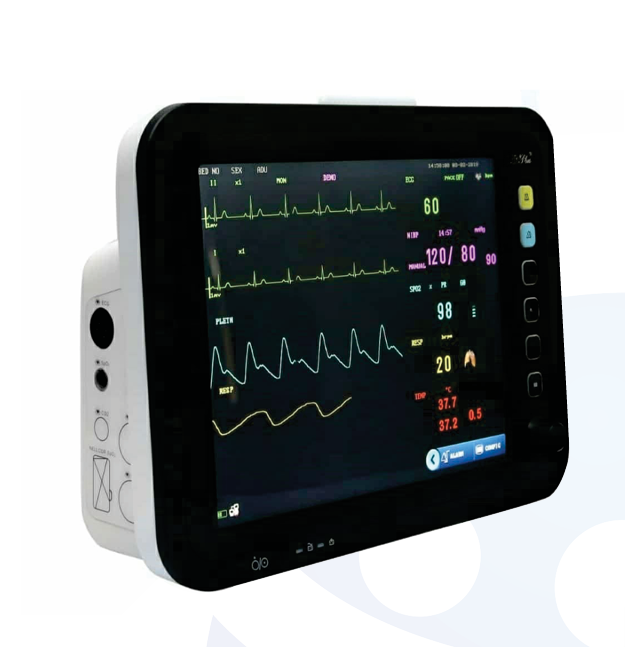

The Yonker PM30 Multi-Parameter Monitor offers a high-resolution 12.1” display and advanced monitoring of ECG, NIBP, SpO₂, Temperature, Pulse Rate, and Respiration. With customizable alarms, high measurement accuracy, and dual temperature channels, it is ideal for hospitals, ICUs, and emergency settings.
Applications
-
ICU/CCU/ER
-
General wards
-
Pediatric and neonatal monitoring
-
Operation theaters
-
Clinics and transport units
Power Supply
-
Not specified in the image (likely AC + rechargeable battery like other models)
Interface
-
12.1″ high-resolution TFT color display
-
Multi-parameter waveform display
-
Manual, auto, and continuous modes for NIBP
Voltage & Calibration
-
NIBP Method: Oscillometry
-
Auto measure time adjustable
-
Measurement range: 10–270 mmHg
Signal & Noise
-
ECG Accuracy: ±1 bpm or ±1% (whichever is greater)
-
S-T Segment Detection supported (range 0.2–2.0 mV)
-
Dual-channel temperature monitoring
Performance Specifications
➤ ECG
-
Lead Mode: 3-lead or 5-lead
-
Lead Selection: I, II, III, aVR, aVL, aVF, V
-
Heart Rate Range:
-
Adult: 15–300 bpm
-
Pediatric/Neonatal: 15–300 bpm
-
-
Waveform: 2 channels
➤ SpO₂
-
Measurement Range: 0–100%
-
Accuracy:
-
70–100%: ±2%
-
<69%: Unspecified
-
➤ Pulse Rate
-
Range: 20–254 bpm
-
Accuracy: ±3 bpm
➤ Respiration
-
Method: RA–LL impedance
-
Range:
-
Adult: 0–120 rpm
-
Pediatric/Neonatal: 0–150 rpm
-
-
Apnea Alarm: Yes
➤ Temperature
-
Range: 0–50°C
-
Accuracy: ±0.1°C
-
Channels: Dual
Lead System
-
ECG 3-lead or 5-lead
-
Standard waveforms with accurate readings
Certifications
-
CE Certified
Warranty & Support
-
Typically 1-year warranty
-
Local and online support available
Usage Type
-
Continuous multi-parameter monitoring
-
Suitable for adult, pediatric, and neonatal use
