Product Description

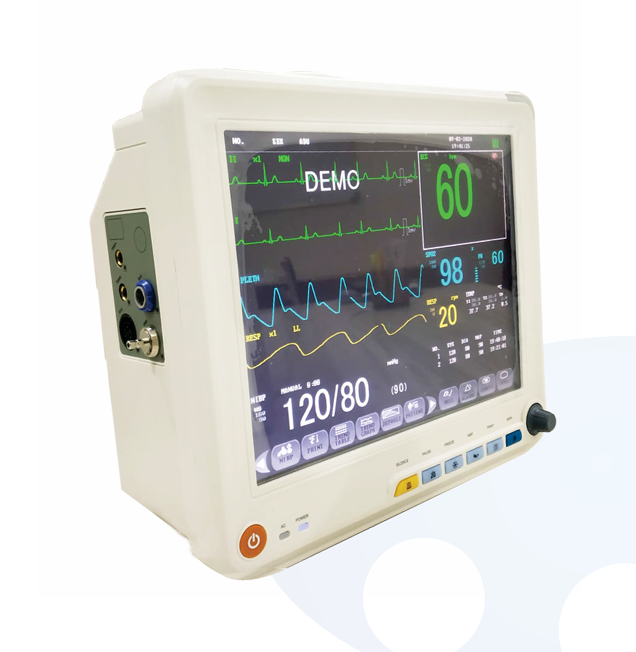

The KO-MED PM 30 is a high-performance, 12.1” TFT multi-parameter patient monitor designed to deliver continuous monitoring of vital signs. Equipped with advanced features such as ECG, NIBP, SpO₂, respiration, temperature, and pulse rate monitoring, this device is suitable for a wide range of clinical environments including ICUs, emergency departments, and operation theatres.
🔍 Specifications by Parameter
➤ ECG
-
Lead Mode: 3-lead or 5-lead
-
Lead Selection: I, II, III, aVR, aVL, aVF, V
-
Heart Rate Range:
-
Adult/Pediatric: 15–300 bpm
-
Neonatal: 15–300 bpm
-
-
Waveform: 2 channels
-
Accuracy: ±1 bpm or ±1% (whichever is greater)
-
S-T Segment Detection: Yes
-
Measurement Range: 0.2 mV – 2.0 mV
➤ NIBP
-
Method: Oscillometry
-
Modes: Manual / Auto / Continuous
-
Auto Measure Time: Adjustable
-
Measurement Range: 10–270 mmHg
➤ SpO₂
-
Measurement Range: 0–100%
-
Accuracy:
-
70–100%: ±2%
-
<69%: Unspecified
-
➤ Respiration
-
Method: RA-LL impedance
-
Range:
-
Adult: 0–120 rpm
-
Pediatric/Neonatal: 0–150 rpm
-
-
Apnea Alarm: Yes
➤ Pulse Rate
-
Range: 20–254 bpm
-
Accuracy: ±3 bpm
➤ Temperature
-
Range: 0–50°C
-
Accuracy: ±0.1°C
-
Channels: Dual
⚙️ General Features
-
12.1” high-resolution TFT screen
-
Supports adult, pediatric, and neonatal patients
-
Audible and visual alarms
-
CE Certified
🧰 Accessories
-
SpO₂ sensor
-
NIBP cuff
-
Temperature probe
-
Rechargeable battery
-
Power supply
🛠️ Usage Type
-
Continuous monitoring
-
Ideal for hospitals, ICUs, clinics, and ambulances
-
For adult, pediatric, and neonatal use
