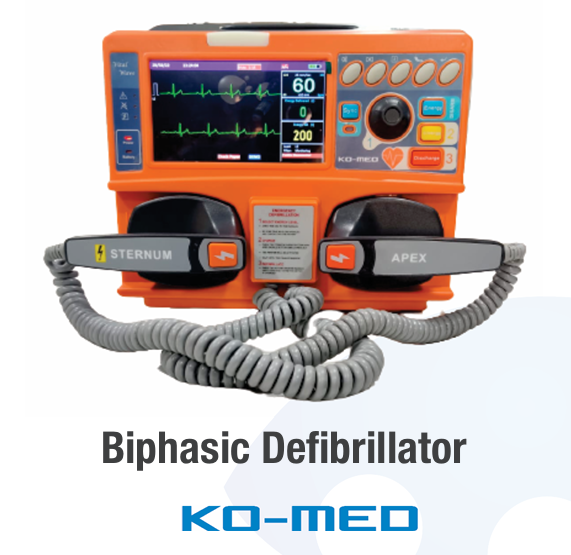

KO-MED Biphasic Defibrillator with ECG & SPO2/NIBP Upgrade

🔹 Features

• 7colour TFT high-resolution display

• Easy energy selection up to 270 joules

• Charges to full energy (270J) in < 8 seconds

• 50+ shocks on full battery charge

• Event trend and data storage up to 24 hours

• ECG acquisition with paddles & cables

• Upgradable to SpO₂ & NIBP monitoring

---

📊 Technical Specifications

Measuring Parameters

• Channels: 2 Channel

• Electrodes: 3/5 leads (Patient cable + paddles)

• Display: 2 Waveforms with HR & Joules

• Leads: I, II, III, aVR, aVL, aVF, V

• Gain Selection: 5/10/15/20 mm/mV

• Sweep Speed: 12.5, 25, 50 mm/sec

• Heart Rate Range: 30–240 bpm

• Frequency Response: 0.05–40 Hz

• CMRR: >100dB

• Input Impedance: >100 M Ohms

Recorder

• Type: High-resolution thermal array

• Printing Speed: 25 mm/sec

• Paper Size: 57 mm × 20 m

• Print Details: HR, waveform, date/time, patient data (ID, name, sex, age), energy level, sweep speed, gain

Display

• Type: Colour TFT

• Size: 7″

• Resolution: 800×480 px

Electrical

• Power Input: AC 230V, 50Hz

• Battery: 14.8V / 4400mAh, Li-Polymer

• Charging Time: ~8 hours

• Operating Time: 40–50 shocks or >3 hours (monitoring without printing)

General

• Weight: 5.4 kg

• Dimensions: 403(L) × 152(W) × 324(H) mm

• Environment: 0–40°C, humidity <90% non-condensing

---

📦 Included

• Defibrillator unit

• Paddles

• Patient cable

• Thermal recording paper

• Rechargeable battery
