Product Description

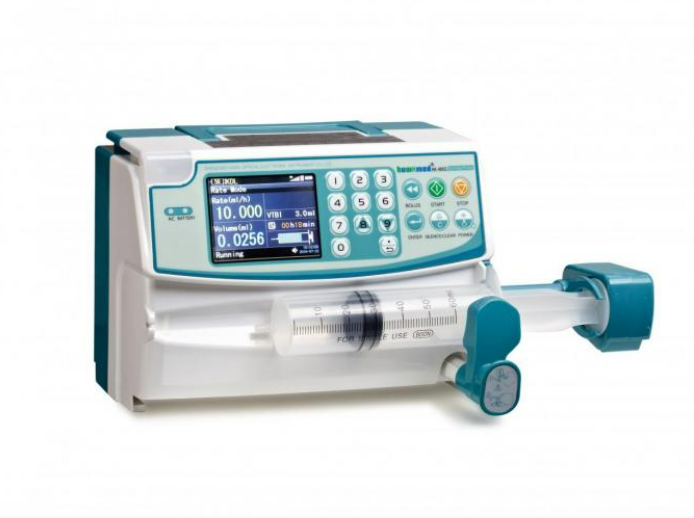

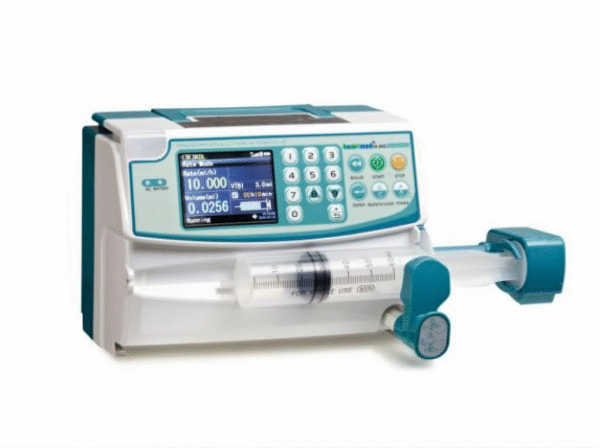

The Hawkmed HK-400III is a high-performance syringe pump designed for accurate, safe, and customizable infusion therapy. Supporting syringe sizes from 2 ml to 60 ml, it auto-detects syringe types and enables programmable rate/time/weight modes. Equipped with occlusion alarms, night mode, and a user-friendly numeric keypad, it ensures superior patient care in hospitals and ICUs. With over 50,000 history record capacity and 13 occlusion levels, this IP44-rated pump is compact, stackable, and ready for multi-pump configurations.
Key Features
-
Supports syringe sizes: 2 ml, 5 ml, 10 ml, 20 ml, 30 ml, 50/60 ml
-
12 infusion modes: Rate, Time, Weight, Intermittent, TPN, TIVA, etc.
-
Auto-detection of syringe size and brand
-
±2% accuracy in infusion rate
-
Graphic pressure indicator to detect occlusion early
-
13 occlusion pressure levels
-
Night mode with screen dimming and key mute
-

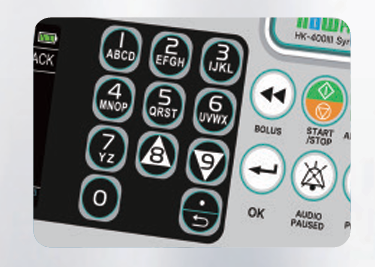

Numeric keypad for fast setup
-

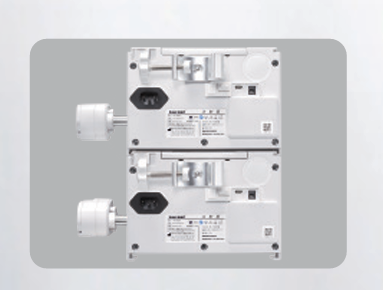

Stackable design (up to 12 pumps)
-

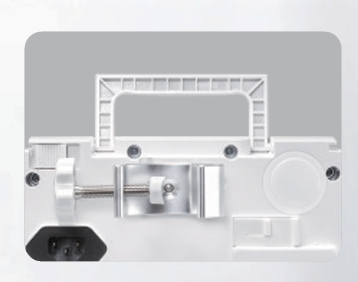

Integrated handle and rotatable clamp for easy mounting
Highlights
-
VTBI: 0–9999.99 ml
-
Volume infused: 0–36000 ml
-
KVO rate: 0.1–10 ml/h (0.1 ml/h increments)
-
History record capacity: 50,000 logs
-
Power: DC 7.2V rechargeable battery + 100–240V AC
-
Battery: 8h with 1 battery (2550mAh), 16h with 2
-
IP44-rated (waterproof protection)
-
Size: 240 × 135 × 138 mm
-
Weight: 1.8 kg
Product Information & Specifications
| Specification | Details |
|---|---|
| Infusion Modes | Rate, Time, Weight, TPN, TIVA, Dose, Program, Micro, etc. |
| Infusion Rate | 0.1–1800 ml/h (depending on syringe size) |
| Syringe Sizes | 2ml, 5ml, 10ml, 20ml, 30ml, 50/60ml |
| Accuracy | ±2% |
| Alarms | Occlusion, Empty, Battery low, Near empty, AC fail, No operate, etc. |
| Occlusion Pressure Levels | 13 levels |
| Waterproof Rating | IP44 |
| Power Supply | AC 100–240V, 50/60Hz |
| Battery | DC7.2V, 2550mAh × 1 or 2 (up to 16h usage) |
| Operating Conditions | Temp 5–40°C, Humidity 10–95%, Air Pressure 86–106kPa |
About This Item
Designed for hospital, ICU, and emergency use, the Hawkmed HK-400III offers unmatched precision and safety in drug infusion. Its intuitive interface, modular design, and extensive compatibility make it a top choice for clinicians needing efficient and reliable infusion control.
How to Use
-
Install syringe and secure using the clamp.
-
Select syringe size; pump auto-detects most types.
-
Program infusion using rate, time, or weight mode.
-
Monitor infusion status via display and pressure indicators.
-
View and download logs via internal memory (50,000 records).
