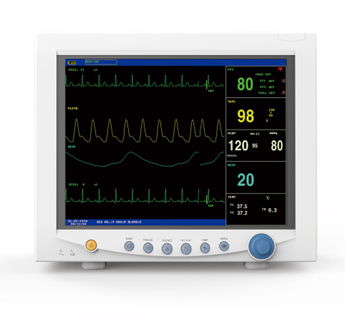

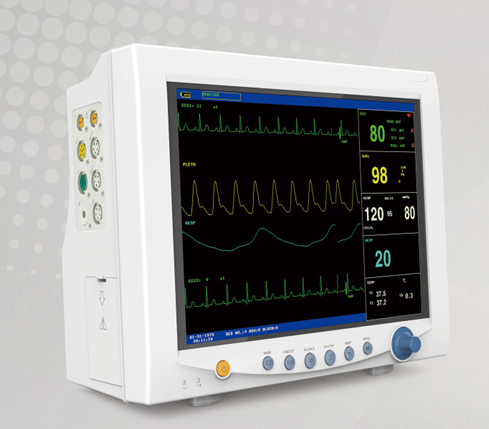

CONTEC CMS7000 Multiparameter Patient Monitor – 12.1” TFT LCD, ECG, SpO₂, NIBP, TEMP, RESP

Product Description

The CONTEC CMS7000 is a high-performance, compact patient monitor designed to meet the demands of clinical environments. It integrates ECG, SpO₂, NIBP, TEMP, RESP, and optional IBP monitoring into one portable unit. Its bright 12.1” TFT display enables easy real-time visualization of vital signs, with up to 8-channel waveform display and 7-lead ECG view on one screen. This device is user-friendly with a quiet, fanless design, and supports multiple languages, making it suitable for a wide range of clinical settings.

---

Key Features

• 12.1  TFT color LCD with multi-language interface

• Simultaneous display of up to 8 waveforms and 7-lead ECG

• Fanless design for quiet, hygienic operation

• Suitable for adult, pediatric, and neonatal patients

• Review function for 168 hours trend data and 60 arrhythmia events

• Optional IBP and CO₂ monitoring

• Rechargeable lithium battery for uninterrupted monitoring

• Wireless WiFi central monitoring connectivity

• Anti-ambient light interference display

---

Highlights

• ECG, SpO₂, NIBP, RESP, TEMP (dual-channel), IBP (optional)

• Multi-language support: English, French, Spanish, German, etc.

• Adjustable waveform layout

• Audible/visible alarms for critical values

• Defibrillation-proof design

• Compact and portable (only 3.1 kg)

---

Product Information & Specifications

Functions:

• ECG (HR, waveform, arrhythmia/ST analysis)

• SpO₂ (pulse rate, waveform, oxygen saturation)

• RESP (rate & waveform)

• NIBP (SYS, DIA, MAP – manual, auto, continuous)

• TEMP (dual channel T1, T2, TD)

• Optional: IBP (CH1, CH2, SYS/DIA/MAP)

Physical Characteristics:

• Dimensions: 319 mm × 161 mm × 269 mm

• Weight: < 3.1 kg (excluding accessories)

---

About This Item

CONTEC CMS7000 is engineered for precision and ease of use in hospital, clinic, and home care settings. Its anti-interference screen ensures clear readings even under strong lighting. With built-in rechargeable battery, network connectivity, and defibrillation protection, it’s a robust solution for continuous patient monitoring.

---

How to Use

1. Connect patient leads (ECG, SpO₂ sensor, NIBP cuff, TEMP probe).

2. Power on the monitor.

3. Select appropriate patient category (adult/pediatric/neonate).

4. View real-time vitals and configure alarm thresholds.

5. Review stored trends, waveforms, and events as needed.
