Product Description

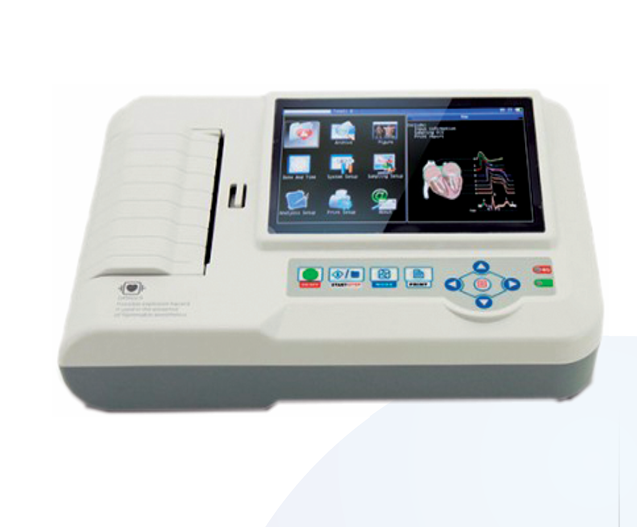

The CONTEC CMS600G is a 6-channel ECG machine equipped with a high-resolution 7-inch touch screen and automatic ECG waveform interpretation. Designed for professional use in hospitals and clinics, it supports real-time display, fast printing, and long-lasting battery backup. The device allows simultaneous 3/6/12-lead ECG display and storage of over 100 patient records.
Applications
-
Advanced diagnostic cardiology
-
Emergency and critical care ECG monitoring
-
Clinics, hospitals, and mobile diagnostics
Power Supply
-
AC Input: 100–240V, 50/60Hz
-
DC Input: 7.4V, 3700mAh rechargeable lithium battery
-
Battery Backup: Approx. 90 minutes
Interface
-
7” Touch Screen LCD
-
High-speed thermal printer
-
Auto/manual printing modes
-
Data export via USB (optional software)
Voltage & Calibration
-
Input Way: Floating and defibrillator protected
-
Patient leak current: ≤10µA
-
Calibration voltage: 1mV ±0.2mV
-
Standard sensitivity: 10mm/mV (±5%)
Signal & Noise
-
Frequency Response: 0.05Hz – 150Hz (±3dB)
-
EMG filter: 35Hz (±3dB)
-
AC Filter: 50/60Hz
-
CMRR: ≥ 60dB, ≥100dB (with filter)
Performance
-
Sampling Rate: 1000Hz
-
Paper Size: 210mm (W) x 20m (L)
-
Auto and manual recording
-
Data storage: 100+ patient cases
-
Auto interpretation of:
-
HR, PR, QRS Axis, ST, Duration, Q-Tc, S-T axis, RVI/SVI
-
Lead System
-
12-lead ECG (simultaneous 3/6/12-lead display)
Dimensions & Weight
-
Machine Size: 315mm (L) × 215mm (W) × 77mm (H)
-
Weight: 2.25 kg
Accessories Included
-
ECG cables and electrodes
-
Thermal paper roll
-
Power adapter
-
User manual
Certifications
-
CE Certified
-
FDA Approved
Warranty & Support
-
1-year manufacturer warranty
-
Technical support and service available in UAE
Usage Type
-
Professional diagnostic use
-
Suitable for hospital wards, outpatient departments, ICUs
