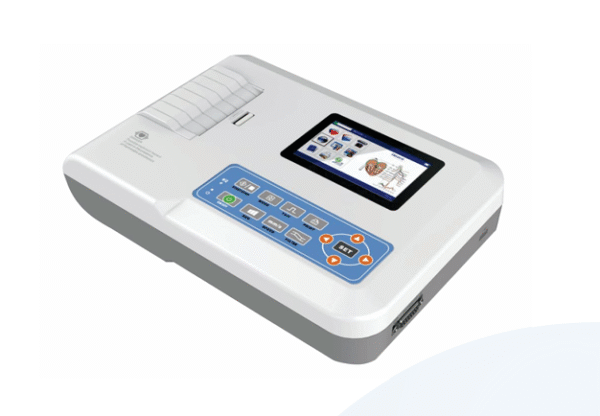

CONTEC CMS300G – 3 Channel ECG Machine with Color LCD Display & Interpretation

Product Description

The CONTEC CMS300G is a 3-channel ECG machine with a color display and built-in interpretation, designed for accurate and efficient cardiac monitoring. It supports real-time waveform display, high-speed printing, data storage, and multiple printing modes. Ideal for hospitals, clinics, and mobile medical units.

---

Applications

• Diagnostic ECG recording

• Cardiology departments

• Portable use in field healthcare settings

---

Power Supply

• AC: 100 – 240V, 50/60 Hz

• DC: 7.4V, 3700 mAh rechargeable lithium battery

• Battery Backup: Approx. 1.5 hours with continuous printing

---

Interface

• 3.5” Color LCD Display

• Touch screen (optional)

• USB for data transfer (via basic software)

---

Voltage & Calibration

• Calibration Voltage: 1mV ± 0.2mV

• Patient leakage current: ≤10µA

• Input way: Floating and defibrillator-protected

---

Signal & Noise

• Frequency Response: 0.05Hz – 150Hz (±3dB)

• EMG filter: 35Hz (±3dB)

• CMRR: ≥ 60dB, ≥ 100dB (add filter)

• AC Filter: 50/60Hz

---

Performance

• Simultaneous display of 3/6/12 leads

• Storage: 100+ patient data/cases

• Time Constant: 3.2s

• High-speed thermal printer

• Sampling Rate: 1000Hz

---

Lead System

• 12-lead ECG

---

Dimensions & Weight

• Size: 315mm (L) × 215mm (W) × 77mm (H)

• Net Weight: 1.7 kg

---

Accessories Included

• Power cable

• Thermal paper

• Patient cable

• Electrodes

• User manual

---

Certifications

• CE Certified

• FDA Approved

---

Warranty & Support

• 1-year manufacturer warranty

• Technical support available in UAE

---

Usage Type

• Hospital and clinical diagnostics

• Portable field use
