Product Description

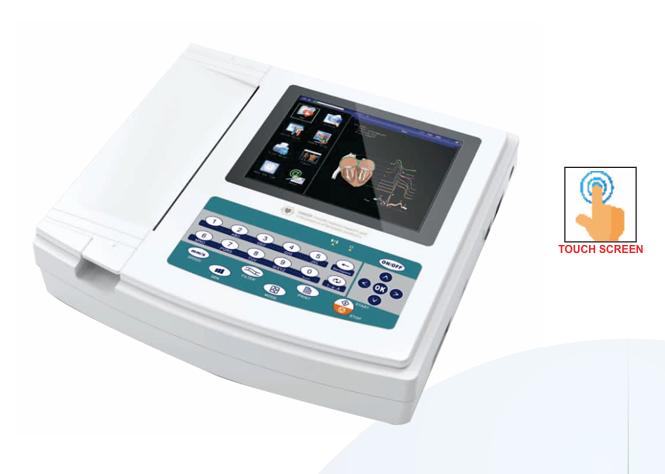

The CONTEC CMS1200G is a high-end, 12-channel ECG machine designed for advanced clinical diagnostics. It features an 8” touch LCD display, supports both manual and auto recording, and offers data interpretation with USB export capability. Ideal for hospitals and cardiology departments requiring accurate and detailed ECG analysis.
Applications
-
Hospital cardiology units
-
Emergency wards
-
Mobile health diagnostics
-
Clinics and research labs
Power Supply
-
AC Input: 100–240V, 50/60Hz
-
DC Input: 14.8V, 3700mAh rechargeable lithium battery
-
Battery Backup: Approx. 90 mins continuous printing / 4 hrs standby
Interface
-
8” Color LCD Touchscreen
-
USB & RS232 data transfer
-
Supports USB printer output (optional)
Voltage & Calibration
-
Sensitivity: 5, 10, 20, 40 mm/mV
-
Standard: 10 mm/mV ±0.2%
-
Input impedance: ≥50MΩ
-
Defibrillation protection circuit in place
Signal & Noise
-
Frequency Response: 0.05Hz – 150Hz (±3dB)
-
EMG Filter: 35Hz (±3dB)
-
CMRR: ≥ 60dB, ≥ 100dB (add filter)
-
Time Constant: ≥3.2s
Performance
-
Simultaneous 3/6/12-lead waveform display
-
Real-time & auto ECG interpretation
-
Paper Size: 210mm (W) × 20m (L)
-
Recording paper speed: 25mm/s, 50mm/s
-
Storage: 100+ patient data entries
-
Auto analysis of:
-
HR, PR, QT, QRS Axis, P/QRS/T Axis, RV5/SV1, R/S Ratio
-
Lead System
-
Standard 12-lead ECG with full interpretation
-
Rhythm record options: 1×12, 1×10, 2×6, 3×4 etc.
Dimensions & Weight
-
Size: 334mm × 320mm × 85mm
-
Net Weight: Approx. 2.5 kg
Accessories Included
-
ECG cables and electrodes
-
Thermal recording paper
-
Power adapter
-
User manual
Certifications
-
CE Certified
-
FDA Approved
Warranty & Support
-
1-Year Manufacturer Warranty
-
Technical support available in UAE
Usage Type
-
Advanced clinical ECG diagnostics
-
Suitable for hospital, ICU, CCU, and mobile applications
